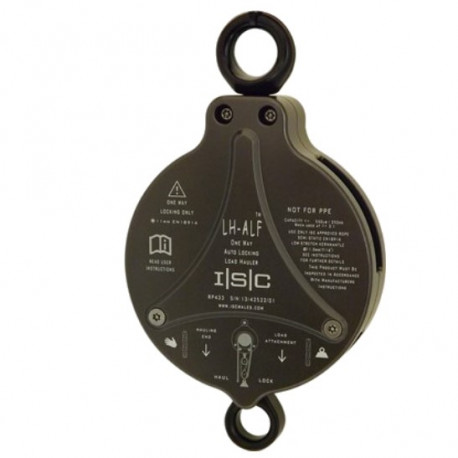

LH-ALF by ISC View larger

LH-ALF by ISC

LHALF

New

ISC’s LH-ALF™ has been designed for material handling . The LH-ALF™ has brake pawls on one side only which means that there is no restriction on hauling speed/movement

More details

473.55 €

More info

The one-way locking LH-ALF™ is therefore ideal in a setting where a user needs to haul quickly, such as when unloading materials from a supply vessel at an offshore wind turbine.

The LH-ALF can be used in a 2:1 hauling system (SWL 250kg)

Technical Information

Rope diameter range (mm)11
Finish Anodised
Colour Grey
May be serviced Yes
Weight (grams)1236

Notes

The approved rope for use with the LH-ALF is ISC work LINE (11mm Low Stretch Kernmantle, EN1891A).

SPECIFICATIONS:

        • Height: 240 mm (9 4/8″)
        • Width:  139 mm (5 1/2″)
        • Depth:  45 mm ( 1 3/4″)
        • Weight:  1236 g (43.5 oz)
        • Body Material:  Aluminum
        • Finish Anodize
