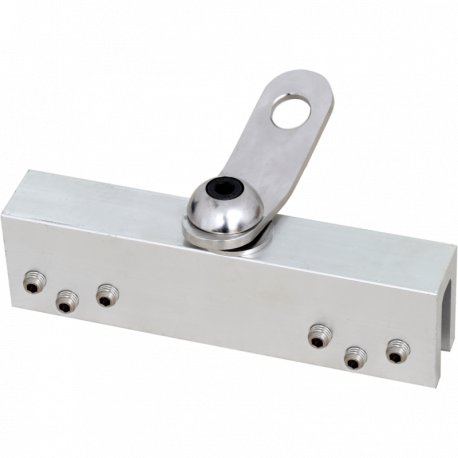

ALUMINIUM ANCHOR FOR STANDING SEAM ROOF

6003400

New

Roof top anchor device is designed to be fixed on metal standing seams. The U-profile allows installation on a multitude of different seams.

The 360° swivel anchorage eye on the top provides universal connection for the fall arrest system.

Easy to install, it is the ideal anchorage point on standing seam roofs near areas where there is a risk of falling, for instance near sky lights.

More details

More info

 Material: Aluminium.

Weight: 0,83 kg.

Number of users: 1.

Compliance: EN 795:2012 Type A.

Static strength > 12 kN.

Minimum breaking strength > 25 kN.

Note:

It can only be used by one person at a time. It must be installed for the period of use and then removed from the work site when it is no longer being used, this is made easier as it attaches to the structure without any need for drilling or specific tool. No intervention on the underside is necessary for it to be set up, only the set of fasteners supplied with the anchorage point is necessary. This set of fasteners is composed of  8 mm threaded pins hexagonal socket with rounded end and  8 mm dia pan head cup point hexagonal grub screw
