> >>JAG TRAXION Progress capture pulley

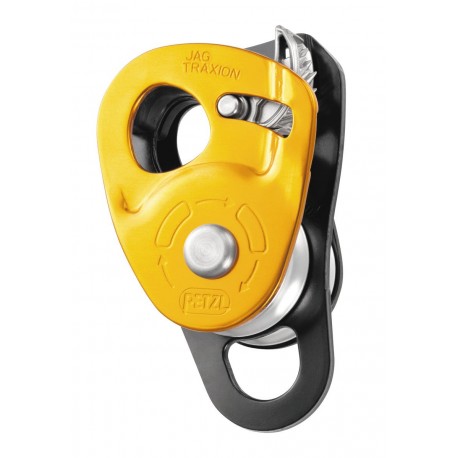

JAG TRAXION Progress capture pulley View larger

JAG TRAXION Progress capture pulley

P54

New

High-efficiency double progress capture pulley

Double progress capture pulley designed for use with the JAG double pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

More details

116.85 €

More info

  • Designed for use with the JAG double pulley to make a 4:1 haul system
  • Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...)
  • Sheave mounted on sealed ball bearings for excellent efficiency

Specifications

  • Weight: 145 g
  • Certification(s): CE EN 567, NFPA 1983 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %
